K2F NextGen Rudder System V2

K2F NextGen Rudder System V2

Introducing the K2F NextGen Rudder System V2, a must-have accessory for your kayak! Designed by Kayaks2Fish, this rudder system is perfect for enhancing your kayaking experience. With its foot control system and innovative design, you'll have complete control over the direction of your kayak.

The product features a base rod with rotating pedals that allow you to manoeuvre and change directions using just your feet quickly. The steering system includes a rudder blade and connecting support, ensuring smooth navigation on any water surface. This package contains all necessary components, including foot brace rails, toe-controlled foot braces, deployment cables with bungee cords, steering cables, and even a ball.

Crafted from high-quality materials to ensure durability in various weather conditions or rough waters, this rudder system is built to last. It weighs only 1.50 kg (3 pounds), making it lightweight enough not to add unnecessary weight but sturdy enough for reliable performance.

The rudder will make navigating through challenging situations effortless! Whether you're an experienced kayaker looking for better control or someone new wanting more stability during their adventures on the water, this K2F NextGen Rudder System V2 has you covered! Get yours today!

Features:

• Control System: Foot-controlled with a base rod and rotating pedals for easy direction change.

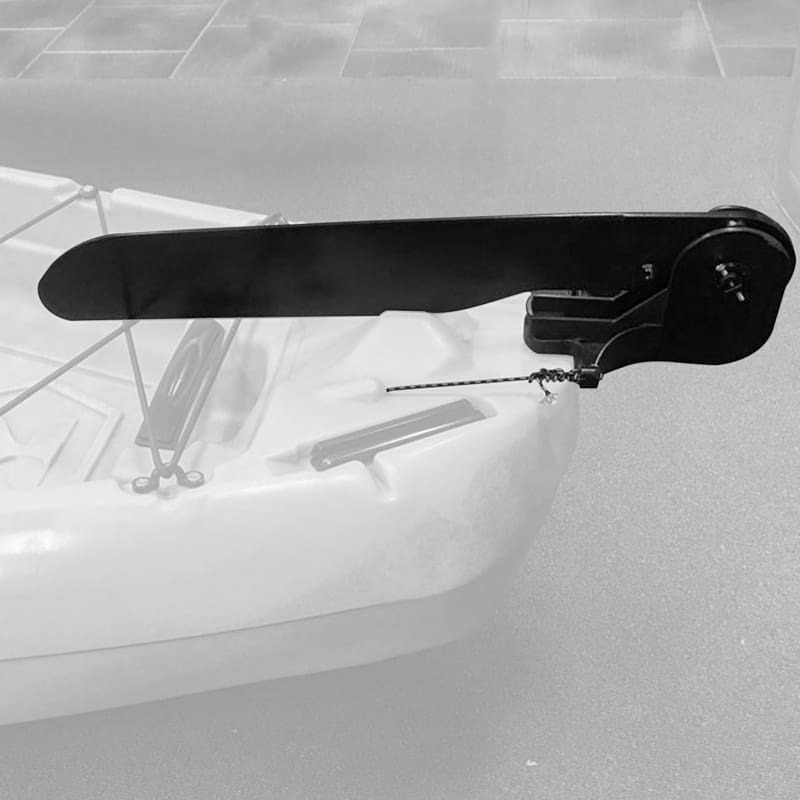

• Steering System: Includes a rudder blade and connecting support for smooth navigation.
• Compatibility: Specially designed for specific kayak models ensuring a perfect fit.
• Directional Control: Effective use of the rudder and foot brace together for precise steering.
• Material Quality: Made from high-quality materials, ensuring durability in various weather conditions.

Specifications:

• Brand: Kayaks2Fish
• SKU: K2F-RUDDER-V
• MPN: K2F-RUDDER-V
• UPC: 680220213727
• Weight: 1.50 kg
• Compatible Kayak Models: NextGen 1+1, NextGen 10 MKII
• Control System: Foot control with base rod and rotating pedals
• Steering System: Rudder blade with connecting support

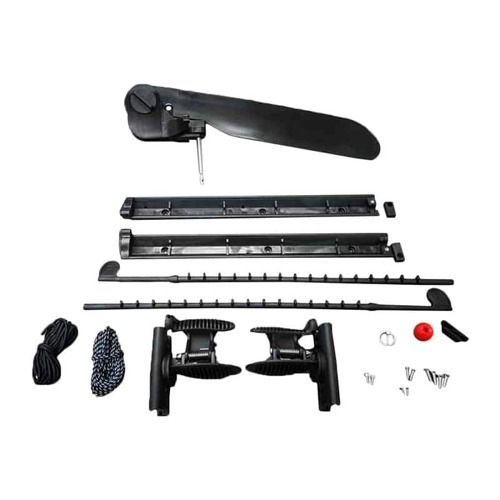

Package Includes:

• 1 x Kayak Rudder Blade Set

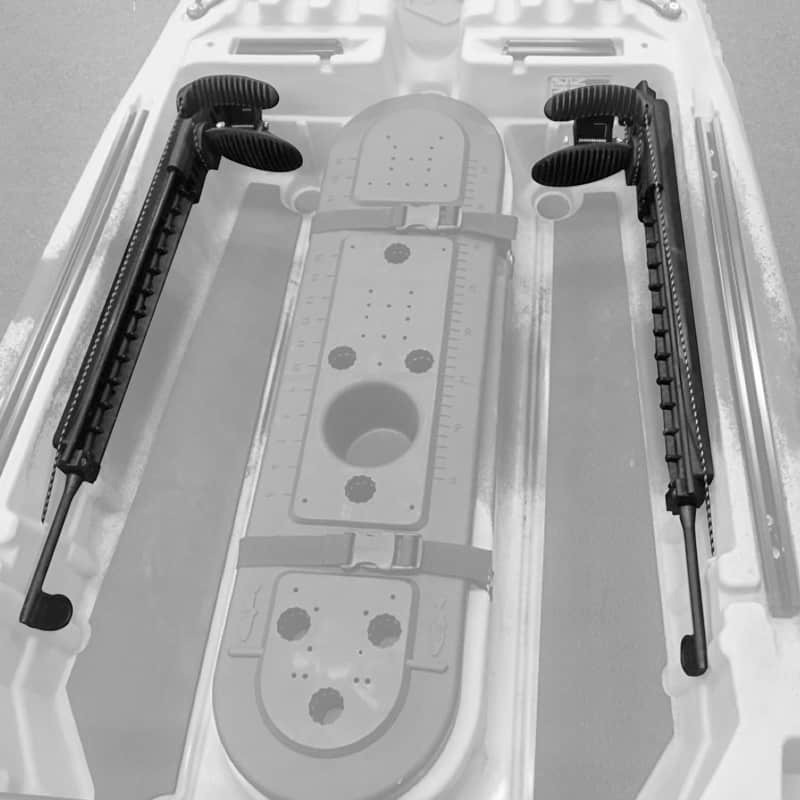

• 2 x Foot Brace Rails
• 3 x Foot Braces With Toe Control

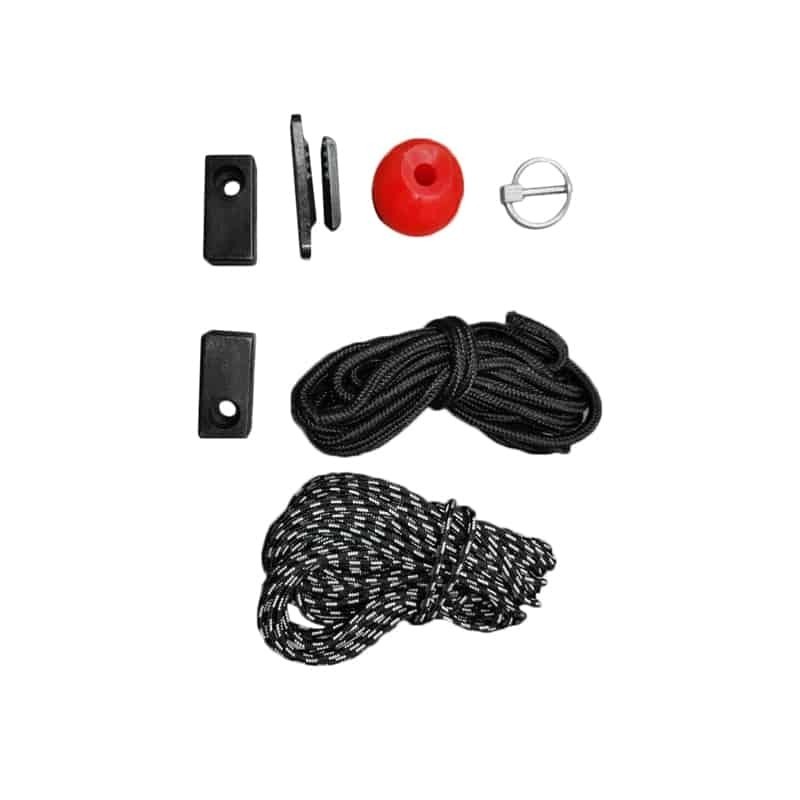

• 1 x Rudder Deployment Cable with Bungee
• 2 x Rudder Steering Cables
• 1 x Rudder Deployment Ball

Warning & Disclaimer:

• Warning: Check system fit and security before each use to ensure safety.
• Precaution: Suitable training is recommended for effective and safe use of the foot-controlled rudder.
• Inspection: Regular maintenance and inspection of components are essential to avoid wear and tear.
• Disclaimer: Manufacturer not liable for damage or injury from improper installation or use.
• Performance Note: Effectiveness may vary with different kayak models and water conditions.
• Compatibility: Designed for specific models; not guaranteed to fit others.

Where can I find instructions to install a rudder system?

The rudder installation video can be found here: https://k2f.com.au/s/cg6

How does the steering work?

There are 2 types of rudder systems.

With Foot pedals - The bottom section of the pedal is fixed to provide a sturdy footrest area, and the top section is where kayak users can apply pressure
With hand control - Simply turn the handle left or right to turn into that direction or keep the handle straight to track straight.

Does a rudder help?

The rudder helps you track straight in the water and also helps you turn well without having to use the paddle to turn the kayak. It is not essential but it does help in certain situations such as:

When you are drifting you can use it to keep you facing the right way.
It can help you track straight when paddling.

Do double kayaks have a rudder system?

The Triton double seater kayak comes with a hand-controlled Rudder system.
The Merlin does not come with a rudder system and does not have the option to install a rudder system.

What kayaks come with a rudder system?

Rudder systems are included or are optional extras for some kayak models. This will be listed on our product description of the kayak model.

Will your rudder system fit my kayak?

Our rudder systems that we sell are designed to match our kayaks2fish kayaks. Unfortunately, we are unable to guarantee that it will fit other brand kayaks.

Where can I purchase a rudder system?

Our NextGen 9 / NextGen 10 kayak rudder systems can be found here: https://k2f.com.au/s/cg7

Our NextGen 1+1 & 10 MKII Rudder System can be found here: https://k2f.com.au/s/cg8

Can the Rudder be installed on a kayak after purchase?

Yes, the rudder system can be installed after the purchase on all applicable kayaks.

Do you install the rudder system?

Sorry, we do not provide installation services.

Please refer to the installation video here: https://k2f.com.au/s/cg6

What's the best value kayak with a rudder system and a pedal drive?

Our best value foot-propelled kayak is the NextGen 11. This features a hand-operated, under stern rudder blade.

It can be found here:https://k2f.com.au/s/cg9


Does the Nextgen 10 rudder system fit the Nextgen 9 kayaks?

Yes, Both the Nextgen 10 and Nextgen 9 use the same rudder system.


Is a 'rudder system' the same as a trolling motor? Does it propel the kayak?

A rudder is only for steering a kayak and does not propel the kayak. A trolling motor is for propulsion.


If I want to stack the kayaks on top of each other should I remove the rudder?

We recommend removing the rudder tail and storing it in the rear storage areas stacking the kayaks as that will avoid any damage.


Does my kayak come with the rudder pre-installed?

Fixing the tail is only required. If you purchase a rudder system separately you will need to assemble the product. However, we do send a detailed instruction video on how to assemble.


How do I deploy the Rudder Blade on NG10, NG10 MKII, NG09, NG1+1, Triton or Kronos?

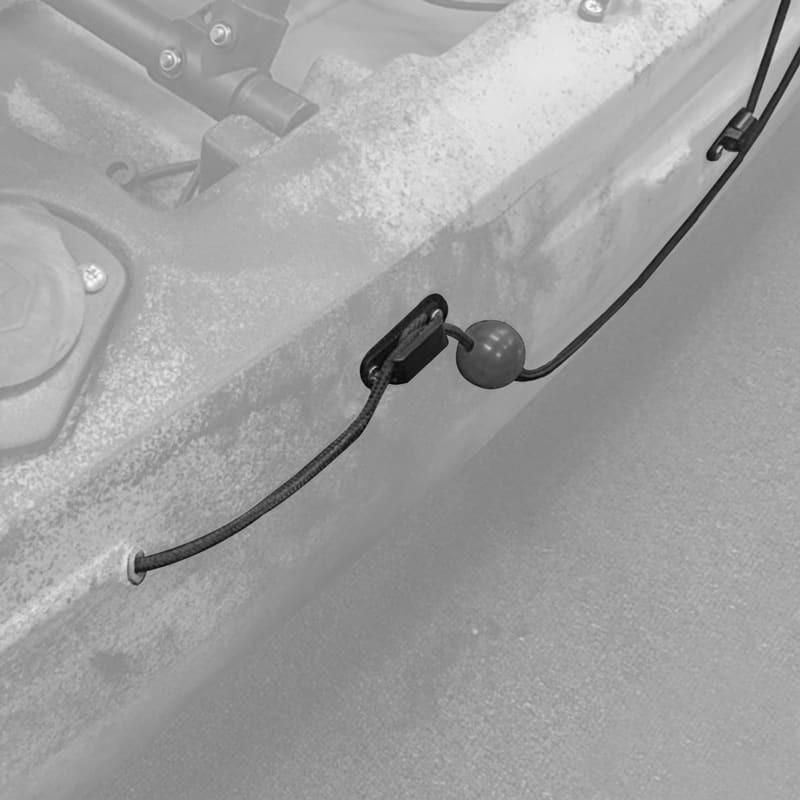

Pull the Rudder Deployment Cable (black thick rope) toward the bow by grabbing the red Rudder Deployment Ball, which will provide extra grip. Ensure that the Deployment Cable is not in the Rudder cable cleat while pulling. Once the Rudder Blade is fully deployed, only then can you slot the Rudder Deployment Cable into the rudder cable cleat to keep the Rudder Blade in place.

Friendly-tip: The easiest way to deploy the Rudder Blade is to pull the Rudder Deployment Cable in one strong motion instead of pulling it slowly.

What accessories have to be removed from the NextGen 10 to enable stacking? Just the rudder? Or all the tracks etc as well?

Just the rudder can be removed and the kayaks can be stacked upside down on top of each other. It is also recommended to remove the drainage plugs, seat, paddle and swivel rod holder, if you are loading the kayaks, upside down.


Do I need to buy any extra hardware to install the rudder?

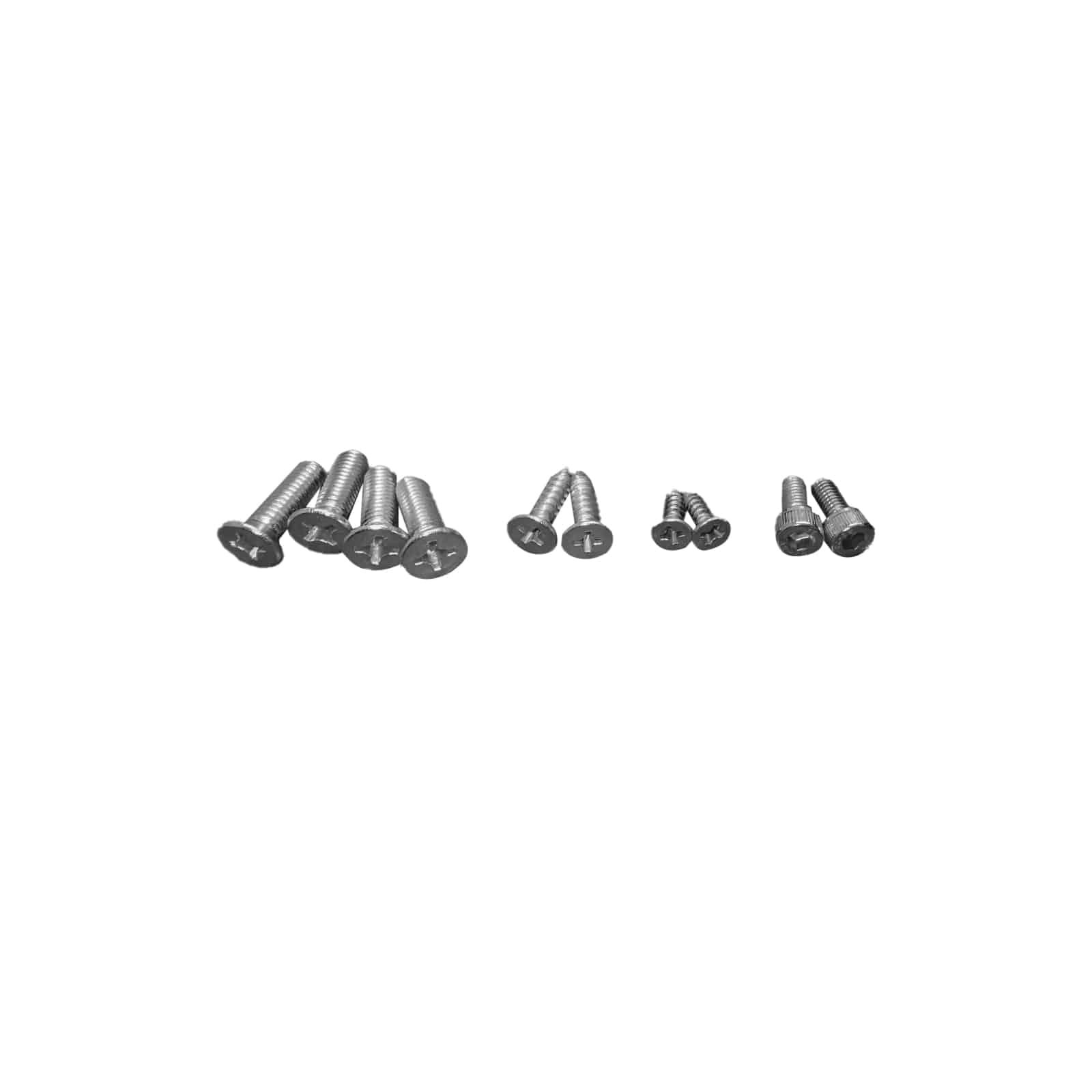

The rudder system comes with all the necessary hardware including bolts, etc, to fit on Kayaks2Fish kayaks.


Are all the rudders on your kayaks the same?

There are two types of rudder system.

Foot pedals - The bottom section of the pedal is fixed to provide a sturdy footrest area, and the top section is where kayak users can apply pressure with their foot to steer the rudder.
Hand control - Simply turn the handle left or right to turn into that direction or keep the handle straight to track straight.
Some kayaks may have recessed fins underneath, which you should be mindful of when transporting the kayak. Pressure against or hitting the fin may cause damage.

PLEASE NOTE: Different models may use slightly different components. Please check our website for the correct rudder system if purchasing separately.


Will removing my rudder void my warranty?

No, removing the rudder system will not void the warranty as long as you cause no damage to the kayak.

PLEASE NOTE: Some screws may be self-tapped in, so if it is removed, there will be holes where the screws were placed. Therefore, if these holes are not covered, the kayak will take in water if water reaches the holes.


What is the plastic tube at the back of the kayak?

It is to stop the cords from rubbing against the kayak and fraying.


My plastic tube is coming out is this a problem?

This is normal and you can press it back against the hole.

Why should the kayak's rudder be serviced?

Regular maintenance of a kayak's rudder system is recommended to ensure smooth operation and extend its lifespan. Here are some key steps for rudder management.

1. Rinse After Each Use: Especially if used in saltwater, rinse the rudder system thoroughly with fresh water to prevent salt buildup and corrosion.

2.Inspect Cables and Lines: Check for any fraying, kinks, or signs of wear on cables, lines, and pull cords. Replace any damaged components to maintain reliable steering.

3.Lubricate Moving Parts: Apply a marine-grade lubricant to pivot points, the rudder pin, and any other moving parts to keep them functioning smoothly.

4. Check the Rudder Blade for Damage: Inspect the rudder blade for cracks, chips, or bends. Minor damage can be repaired, but a severely damaged blade may need replacement.

5.Tighten or Replace Hardware: Check all screws, bolts, and nuts for tightness. If any hardware is rusted or corroded, replace it with stainless steel components.

6. Adjust Tension: Make sure the rudder lines or cables have proper tension. They should not be too loose or too tight to ensure effective steering.
